Concrete truck mixer

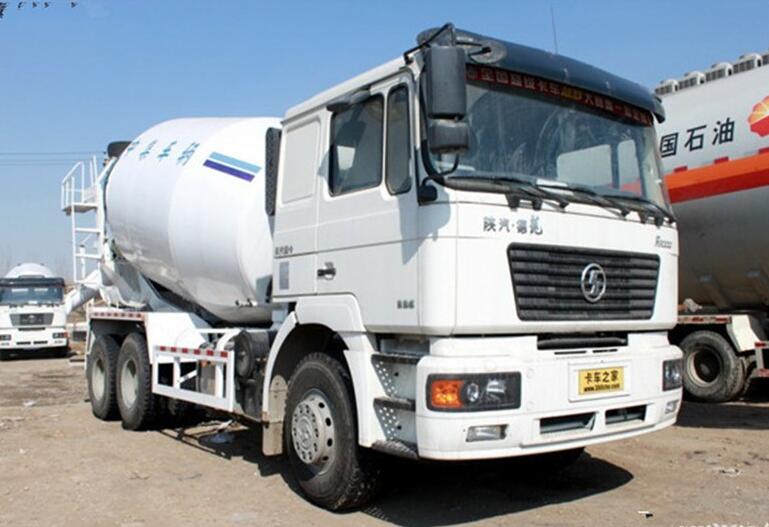

Shacman chassis 8m³ concrete truck mixer
EngineBrandWeichaiModelWD615.38Power (kw/HP)280/380Max. torque (N.m)/rpm1460/1400-1600Displacement (
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | Shacman F2000 SX5254GJBJT364 |
| Power | kw/HP | 280/380 |
| Max. torque (N.m)/rpm | — | 1460/1400-1600 |
| Displacement | L | 9.726 |
| Emission standard | — | Euro II |
| Front axle | — | 7500kg |
| Rear axle | — | 13000kg,Double reduction driving axle with inter-wheel differential and differential lock |
| Ratio | — | 5.73 |
| Driving type | — | 6x4 |
| Weight (Complete kerb mass (kg)) | — | 13430 |
| GVW | kg | 32500 |
| Dimensions (LxWxH (mm)) | — | 9130x2490x3950 |
| Effective volume(m3) | — | 8 |
| Front/rear overhang(chassis) | — | 1525/2630 |
| Wheel base | mm | 3625+1350 |
| Performance (Max. speed ( km/h)) | — | 88 |
| Min. turning circle | m | 17.8 |
| Min. ground clearance | mm | 314 |
| Approach/Departure angle(°) | — | 20/19 |
| Gear shift | — | 9-forward and 1-reverse speeds |
| Clutch (Type) | — | Single plate, diaphragm spring |
| Diameter (mm) | — | D-430 |
| Action | — | Mechanical type, hydraulic and pneumatic operation |
| Service brake | — | With dual-circuit compressed air brake |
| Park brake | — | Power spring brake acting on rear wheel |
| Steering (Type) | — | Integral circuiting ball power steering |
| Optional | — | 4 point are suspension, A/C, air suspension driver seat, 2 sleeper bed... |
| Chassis (Type) | — | Ladder structure with parallel straight300x80x(8+7) |
| Tyres (Type(standard)) | — | 11.00-20 |
| Fuel tank (Tank capacity (L)) | — | 380 |
| Electrics (Type) | — | 24V |
| Starter | — | 5.58kw (24V) |
| Battery | — | 135Ah |
| Cab (Type) | — | MAN F2000, Lengthened flat roof |
| Equipemets | — | Hydraulic suspension cab, hydraulic chair with seatbelts, 1 sleeping bed |
