Concrete truck mixer

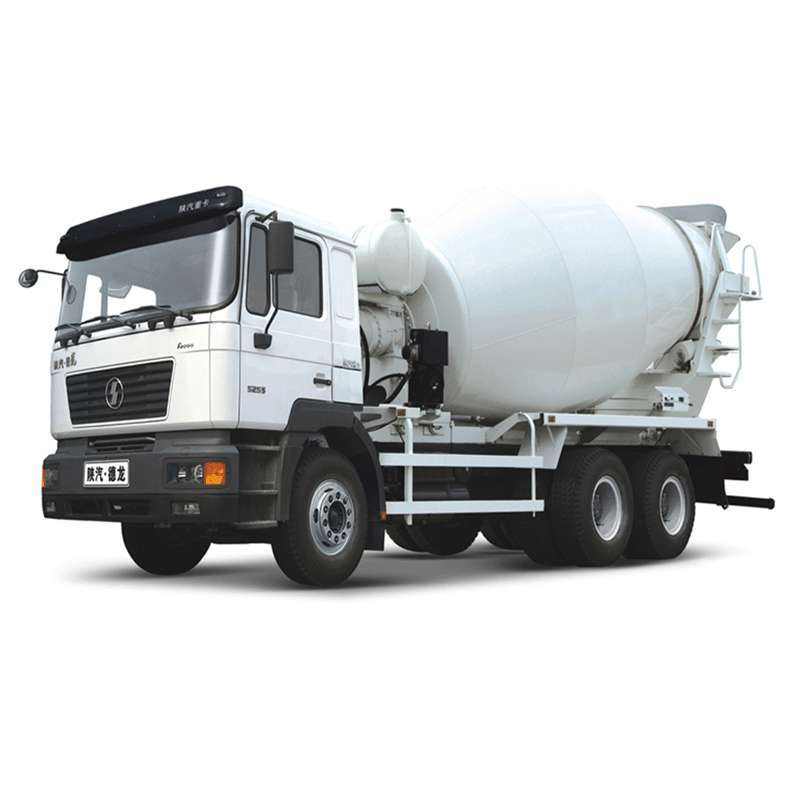

Shacman chassis 6m³ concrete truck mixer
Shacman chassis 6m³ concrete truck mixer — Concrete truck mixer. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Chassis model | — | SX5255GJBUR384 |
| Overall dimensions | mm | 9190×2500×3900 |
| Mix cubage | M3 | 5.7 |
| Curb weight | kg | 12605 |
| Wheel base | mm | 3800+1350 |
| F/R track base | — | 1939, 1860/1860 |
| Approach/departure angle | ° | 20/21 |
| Tire specification (9.00-20) | — | Max speed(km/h) |
| Number of axles (3) | — | Electric system |
| Operation control system (Power Steering) | — | Allowable passengers in cab |
| Equipment (Mixing Drum) | — | Geometric volume |
| Mixing volume | — | 5.7m3 |
| Filling ratio | — | 0.63% |
| Speed of In | — | 1.2M³/min |
| Speed of Out | — | 0.8M³/min |
| Tilt angle | — | 13° |
| Max working pressure ×Exhaust | — | 415BAR/89.13cc/r |
| Motor (Type) | — | America Eaton HHD 5433 |
| Reducer (Type) | — | Bonfiglioli 577 |
| Deceleration ratio | — | 100:1 |
| Radiator (Type-Fuel tank capacity) | — | Jiangsu Changzhou-18L |
| Water supply system (Water forms) | — | Pressure water tank |
| Water tank capacity | — | 350L |
| Engine | — | Weichai Power Co.,Ltd(Europe III) |
| Production cycle | — | 20days |
| Warranty | — | 12 month, from the date of supply |
