Concrete truck mixer

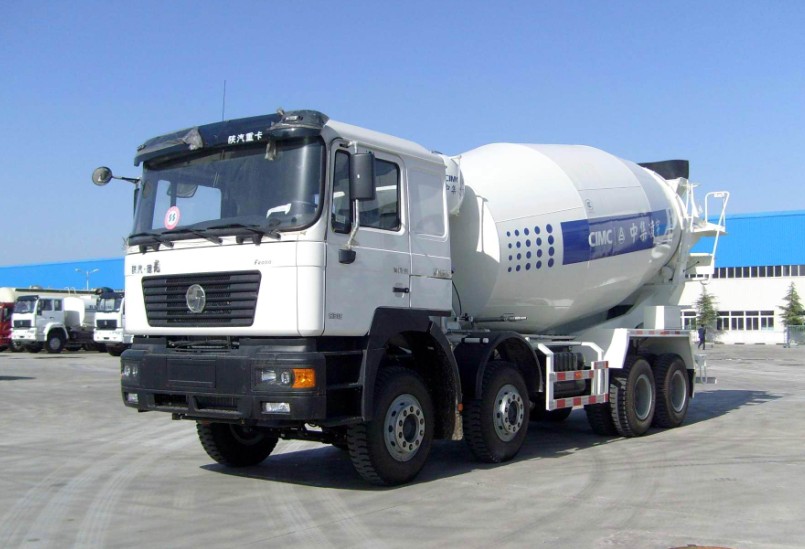

Shacman chassis 15m³ concrete truck mixer
Model: CLY5315GJBOverall size (mm)10865 (L)*2500(W)*3990 (H)Tank body dimension(mm)5790*2300Wheel ba
Parameters
| Item | Unit | Value |
|---|---|---|
| Model: CLY5315GJB — Overall size | mm | 10865 (L)*2500(W)*3990 (H) |
| Model: CLY5315GJB — Wheel base | mm | 1800+3200+1350 |
| Model: CLY5315GJB — Tread f/r | mm | 1939/1850 |
| Model: CLY5315GJB — Max. Speed | km/h | 88 |
| Engine — Max. Power | hp | 375 |
| Engine type | — | Water cooling, 4 strokes, with exhaust brake, direct-injection, supercharge inter-cooler |
Model: CLY5315GJB
| Item | Unit | Value |
|---|---|---|
| Tank body dimension(mm) | — | 5790*2300 |
Chassis
| Item | Unit | Value |
|---|---|---|
| Manufacturer | — | Shacman |
| Model | — | SX5315GJBJT326 |
| Steering system | — | Integral power steering |
| Transmission | — | Manual |
| Brake system | — | Dual circuit air-pressure braking system |
| High pressure oil pump | — | ARK pump |
| Hydraulic motor | — | ARK motor |
| Reducer | — | PMB8sp |
| Water supply system | — | Water supply by air pressure (450L water tank), homemade sprinkler. |
| Air-condition | — | Shacman special air condition |
Engine
| Item | Unit | Value |
|---|---|---|
| Model | — | WP12.375N |
| Fuel type | — | Diesel oil |
Tank body parameter
| Item | Unit | Value |
|---|---|---|
| Mixing volume | — | 15, optional for 12-16m3 |
| Feeding speed | — | More than or equal to 3m3/min |
| Unloading speed | — | More than or equal to 2m3/min |
| Discharge residue rate | — | Less than 0.5% |
