Concrete truck mixer

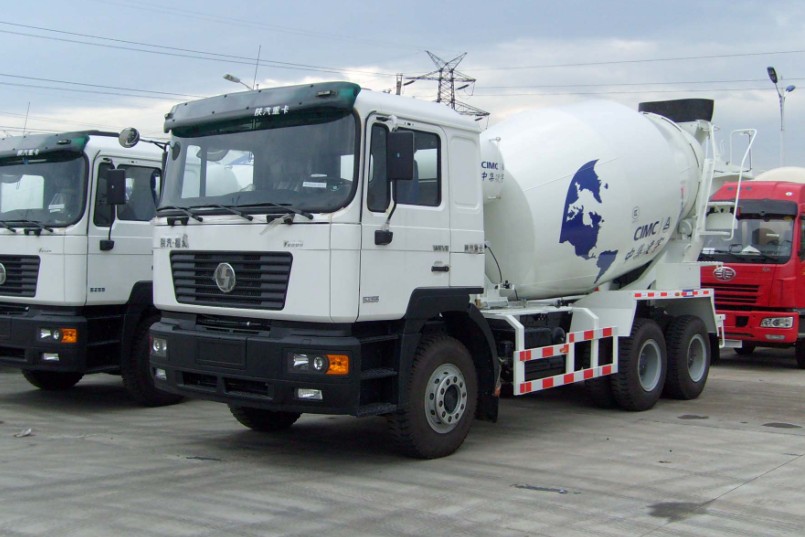

Shacman chassis 12m³ concrete truck mixer
Model: CLY5254GJB7Overall size (mm)9840 (L)*2500(W)*3980 (H)Tank body dimension(mm)5790*2300Wheel ba
Parameters
| Item | Unit | Value |
|---|---|---|
| Model: CLY5254GJB7 — Overall size | mm | 9840 (L)*2500(W)*3980 (H) |
| Model: CLY5254GJB7 — Wheel base | mm | 4000+1350 |
| Model: CLY5254GJB7 — Tread f/r | mm | 2036/1850 |
| Model: CLY5254GJB7 — Max. Speed | km/h | 77 |
| Engine — Max. Power | hp | 336 |
| Engine type | — | 4 strokes, water cooling, turbo, EFI diesel engine |
Model: CLY5254GJB7
| Item | Unit | Value |
|---|---|---|
| Tank body dimension(mm) | — | 5790*2300 |
Chassis
| Item | Unit | Value |
|---|---|---|
| Manufacturer | — | Shacman |
| Model | — | SX5255GJBJR404 |
| Steering system | — | Integral power steering |
| Transmission | — | Manual |
| Brake system | — | Dual circuit air-pressure braking system |
| High pressure oil pump | — | ARK pump |
| Hydraulic motor | — | ARK motor |
| Reducer | — | PMB 7.1sp |
| Water supply system | — | Water supply by air pressure (450L water tank), homemade sprinkler. |
| Air-condition | — | Shacman special air condition |
Engine
| Item | Unit | Value |
|---|---|---|
| Model | — | WP10.336 |
| Fuel type | — | Diesel oil |
Tank body parameter
| Item | Unit | Value |
|---|---|---|
| Mixing volume(m3) | — | 12, optional for 6-12m3 |
| Feeding speed | — | More than or equal to 3m3/min |
| Unloading speed | — | More than or equal to 2m3/min |
| Discharge residue rate | — | Less than 0.5% |
