Concrete truck mixer

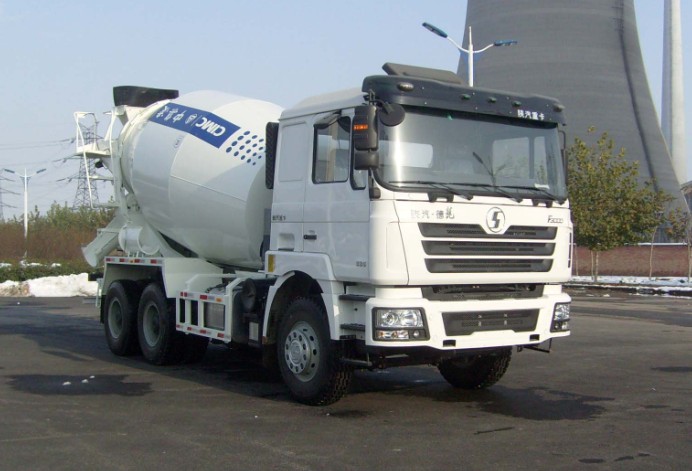

Shacman chassis 10m³ concrete truck mixer
Model: ZJV5254GJBLYSX3Overall size (mm)9390 (L)*2500(W)*3930 (H)Tank body dimension(mm)5370*2300Whee
Parameters
| Item | Unit | Value |
|---|---|---|
| Model: ZJV5254GJBLYSX3 — Overall size | mm | 9390 (L)*2500(W)*3930 (H) |
| Model: ZJV5254GJBLYSX3 — Wheel base | mm | 3800+1350 |
| Model: ZJV5254GJBLYSX3 — Tread f/r | mm | 2035/1850 |
| Model: ZJV5254GJBLYSX3 — Max. Speed | km/h | 90 |
| Engine — Max. Power | hp | 336 |
| Engine type | — | 4 strokes, water cooling, turbo, EFI diesel engine |
Model: ZJV5254GJBLYSX3
| Item | Unit | Value |
|---|---|---|
| Tank body dimension(mm) | — | 5370*2300 |
Chassis
| Item | Unit | Value |
|---|---|---|
| Manufacturer | — | Shacman |
| Model | — | SX5255GJBJT384 |
| Steering system | — | Integral power steering |
| Transmission | — | Manual, Fast 9JS119 |
| Brake system | — | Integral power steering |
| High pressure oil pump | — | ARK pump |
| Hydraulic motor | — | ARK motor |
| Reducer | — | PMB 6.5sp |
| Water supply system | — | Water supply by air pressure (450L water tank), homemade sprinkler. |
| Air-condition | — | Shacman special air condition |
Engine
| Item | Unit | Value |
|---|---|---|
| Model | — | WP10.336 |
| Fuel type | — | Diesel oil |
Tank body parameter
| Item | Unit | Value |
|---|---|---|
| Mixing volume(m3) | — | 10, optional for 6-12m3 |
| Feeding speed | — | More than or equal to 3m3/min |
| Unloading speed | — | More than or equal to 2m3/min |
| Discharge residue rate | — | Less than 0.5% |
