Concrete truck mixer

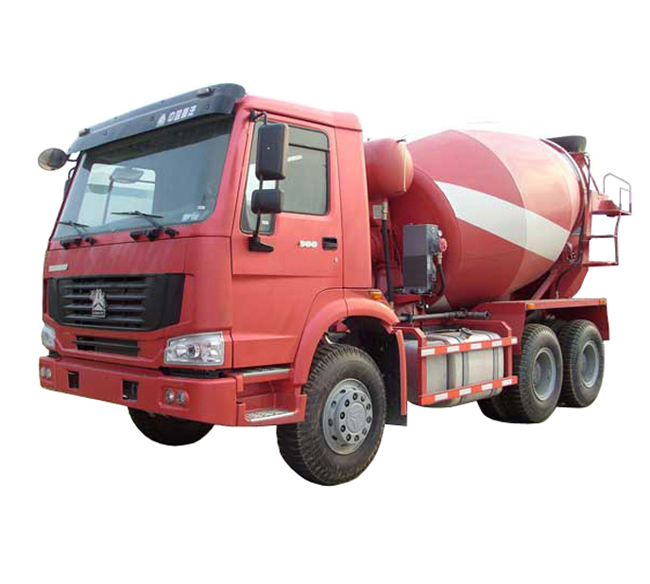

HOWO chassis 9m³ concrete truck mixer
ModelZZ5257GJBM3241ZZ5257GJBN3241ZZ5257GJBN3641Product code52570028525700385257003952570049Cuba
Parameters
| Item | Unit | Value |
|---|---|---|
| Model (ZZ5257GJBM3241) | — | ZZ5257GJBN3241 |
| Product code | — | 52570038 |
| Cubage(m3) | — | 8 |
| Dimensions(mm) | — | 8204x2496x3850 |
| Kerb weight | Kg | 12800 |
| Wheel base(mm) | — | 3225+1350 |
| Engine (Model) | — | WD615.87 |
| Horsepower | — | 336 |
| Maximum outputKw/r/min | — | 247/2200 |
| Maximum torqueN.m/r/min | — | 1350/1300-1600 |
| Type | — | 6-cylinder in line, 4-stroke, water-cooledturbo-charged & inter-cooled, direct injection |
| Bore x Stroke | — | 126x130mm |
| Valve | — | 2 |
| Displacement | — | 9.726L |
Option:Thermostat with 71℃ opening begin; silicone oil fan; Cold-start withelectric-inlet-air heating System (180Ah battery)
| Item | Unit | Value |
|---|---|---|
| Cab | — | SINOTRUK HW70 Standard cab,no bunk,new type seat,adjustable steeringwheel,EURO new type heating & ventilating system, German VDO instrumentssafety belts, exterior sun visor,stereo radio/cassette recorder,left drivingair conditioner.Option: right driving; color |
| Clutch | — | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating withair assistance |
| Transmission | — | SINOTRUK HW15710 or HW19710 transmission ,10 forward and 2 reverseRatio:14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.0013.91(R1) 3.18(R2) |
| Front Axle | — | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakesOption: disc brake |
| Steering | — | German ZF8098 Steering Gear Box ,hydraulic steering with power assistanceRatio:22.2-26.2 |
| Rear Axles | — | HC16 Heavy reduction drive axle,STR hub-reduction with differential locksbetween wheels and axles, enforced STR axle,ratio:5.73;The basicconfiguration of HOWO series construction vehicle can be used in suchbad environment as bad road condition, heavy impact and overloading,which is the best choice for heavy construction vehicle customers. |
| Brake System | — | Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating onrear wheelsAuxiliary brake:engine exhaust valve brake |
| Wheels & Tyres | — | Rims:8.5-20,10 hole-steel ;Tyres:12.00-20 diagonal tyre with 1 Spare tireOption:12.00R20 radial tyre |
| Electrics | — | Operating voltage:24V,negative groundedStarter:24V,7.5 KwAlternator:3-phase,28V,1500 WBatteries:2x12 V,165 AhCigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse lightOption:2x180Ah Batteries |
| Oil Tank | — | Square type-300L Aluminum alloy fuel tank |
| OtherOptional | — | Vertical Muffler;ABS;Automatic Break Clearance Adjusting Arm; Traveling DataRecorder;Under Starting/Stopping Device;Metal Pipeline;Engine Protective Board |
| Delivery date | — | Within 45 days after receipt advance |
| Weight in kg | — | Gross vehicle weight 25000Front axle loading capacity 9000Rear axles loading capacity 2x16000 |
| Performance | — | Maximum drving speed (km/h) 75Fuel consumption (1/100 km) 38 |
| Packing | — | Nude Pack.The packing of the commodity shall be in accordance with the exportstandard packing of the manufacturer, be suitable for long distance transportationof ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. |
