Concrete truck mixer

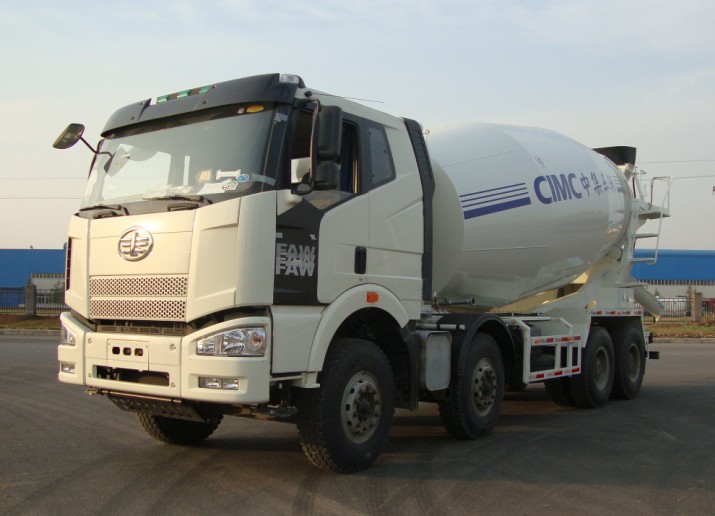

FAW chassis 15m³ concrete truck mixer
Model: ZJV5315GJBLYCAOverall size (mm)10720(L)* 2495(W)*3990 (H)Tank body dimension(mm)6724*245
Parameters
| Item | Unit | Value |
|---|---|---|
| Model: ZJV5315GJBLYCA — Overall size | mm | 10720(L)* 2495(W)*3990 (H) |
| Model: ZJV5315GJBLYCA — Wheel base | mm | 2100+3200+1350 |
| Model: ZJV5315GJBLYCA — Tread f/r | mm | 2050/1830 |
| Model: ZJV5315GJBLYCA — Max. Speed | km/h | 84 |
| Engine — Max. Power | hp | 380 |
| Engine type | — | L6,water-cooled, supercharged inter-cooling diesel engine |
Model: ZJV5315GJBLYCA
| Item | Unit | Value |
|---|---|---|
| Tank body dimension(mm) | — | 6724*2450 |
Chassis
| Item | Unit | Value |
|---|---|---|
| Manufacturer | — | China FAW Group Corporation |
| Model | — | CA1310P66K24T4S2E |
| Steering system | — | Recirculating ball type integral hydraulic power steering system |
| Transmission | — | Manual |
| Brake system | — | Dual circuit air-pressure braking system |
| High pressure oil pump | — | ARK pump |
| Hydraulic motor | — | ARK motor |
| Reducer | — | PMB7.8sp |
| Water supply system | — | Water supply by air pressure (450L water tank), homemade sprinkler. |
| Air-condition | — | FAW special air condition |
Engine
| Item | Unit | Value |
|---|---|---|
| Model | — | CA6DM2-37E3 |
| Fuel type | — | Diesel oil |
Tank body parameter
| Item | Unit | Value |
|---|---|---|
| Mixing volume(m3) | — | 15, optional for 12-16m3 |
| Feeding speed | — | More than or equal to 3m3/min |
| Unloading speed | — | More than or equal to 2m3/min |
| Discharge residue rate | — | Less than 0.5% |
