Concrete truck mixer

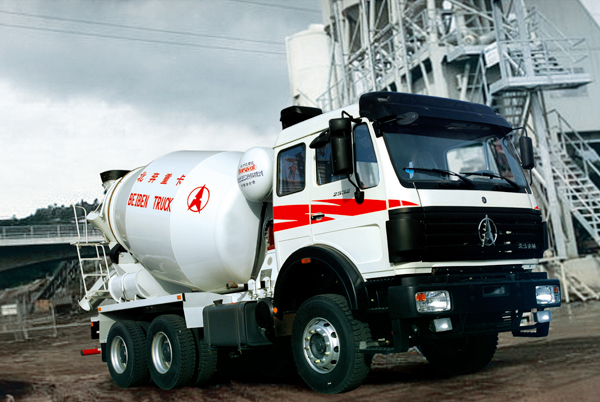

BEIBEN chassis 8X4 10m³ concrete truck mixer
NG80-BY：The overall designing of the vehicles is pleasing to the eyes. The brand new NG80B driving cab is created by the company. The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the
Parameters
| Item | Unit | Value |
|---|---|---|
| Overall dimension | mm | 11080×2500×3900 |
| Driving Model | — | 8x4 |
| Wheel base | mm | 1500+3550+1450 |
| Curb weight | kg | 16500 |
| Engine Model | — | WD615.38，water-cooled，four strokes，6 cylinders straight in line，turbocharged |
| Gearbox Model | — | 9T-180, mechanical type，9 Forward speed gear |
| Frame | — | Based on Germany Benz Technology |
| Axle(Front, Middle and Rear) | — | Based on Mercedes Benz Technology |
| Brake system | — | Safe(consist of Service brake, Assistant brake and Park brake) |
| Steering system Model | — | ZF8098 |
| Fuel tanker capacity | L | 400 |
| Clutch Model | — | 430，Hydraulic boosting |
| Tire | — | 12.00R20 radial tire |
| Electrical system | — | 2 Batteries (12V/135Ah each ) |
| Safe Cab(driver die Zero record) | — | full steel skeleton structure, covered with double layer steel plate; |
| Upper body dimension(CBM) | — | 10 |
