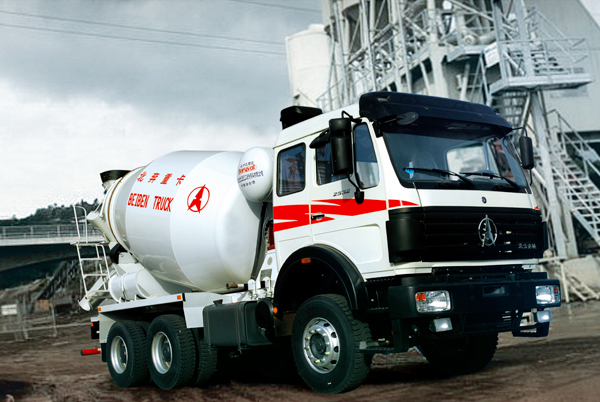

BEIBEN chassis 6X4 8m³ concrete truck mixer
NG80-BY：The overall designing of the vehicles is pleasing to the eyes. The brand new NG80B driving cab is created by the company. The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the
Parameters
2529BY /6×4/3450+1450/Short Cab/LHD
| Item | Unit | Value |
|---|---|---|
| Dimension 尺寸 | — | 8840*2500*3840mm |
| Approaching angle/Departure angle | — | 26/15° |
| Overhang(front/rear) | — | 1410/2530mm |
| Wheel base | — | 3450+1450mm |
| Max speed | — | 80km/h |
| Curb weight | — | 13350kg |
| Loading capacity | — | 11520kg |
| Slope climbing capability | — | Max.40% |
| Engine (Model) | — | WP10.290E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection |
| Displacement | — | 9.726L/Diesel |
| Stroke | — | 126/130mm |
| Max. power | — | 213/2200 (kw/rpm) |
| Max.torque | — | 1160/1200-1600(Nm/rpm) |
| Emission stantard | — | EuroⅢ |
| Fuel tanker capacity | — | 400L |
| Clutch | — | ∮430, Single dry frictional disc，Hydraulic boosting |
| Gearbox | — | 9JS135T-B, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer |
| Gear ratio of gear box | — | 12.11/8.048/5.96/4.42/3.36/2.41/1.77/1.32/1.00 R: 12.66 |
| Suspension system (Front) | — | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs |
| Rear | — | Non-free standing stablization spring, balance suspension system, 13pcs |
