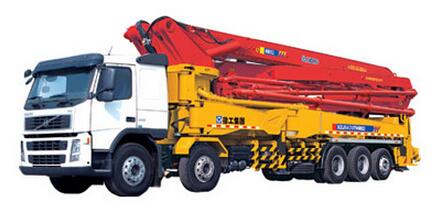

Products / Concrete / Concete pump truck / HB52 Parameters Item Unit Value Travel — Max. speed km/h 90 Travel — Min. turning diameter m 27.4 Travel — Tread (front/rear) mm 2028/1872 Travel — Min. clearance mm 270 Travel — Displacement l 12.8 Travel — Total vehicle weight kg 47000 Travel — Fuel tank capacity l 410 Travel — Fuel consumption per 100km l/100km 50 Pumping operation — Concrete pumping pressure(high pressure/low pressure) Mpa 13/8.7 Pumping operation — Theoretical pumping times(high pressure/low pressure) Times/min 18/27
Travel Item Unit Value Max. gradeability — 38% Brake distance (m) — ≤10 Approach angle/departure angle (。) — 18/12 Tyre specification — 12.00R20 Output power (kw/(r/min)) — 324/1400~1800 Max. torque (N.m/(r/min)) — 2200/1050~1400 Emission Standard — Nation III GBⅢ
Pumping operation Item Unit Value Max. diameter of pumping concrete aggregate — 40 Feeding height — 1450 Placing boom — Pumping slump range Reach height — 51.5 Reach depth — 40 Slewing radius — 47.5 Slewing angle — 364 1st boom stretch angle — 96 2nd boom stretch angle — 180 3rd boom stretch angle — 180 4th boom stretch angle — 180 5th boom stretch angle — 260 Outrigger spanOverall outrigger span — 11020±50 Front outrigger transverse span — 10730±50 Rear outrigger transverse span — 10430±50 Others — Dosing type Lubricating method — Automatic lubrication Controlling method — Manual/remote control Water tank capacity — 650 Max. pressure of water pump — 2
