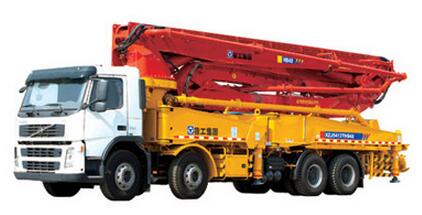

Products / Concrete / Concete pump truck / HB48-B-C-D Parameters Item Unit Value Travel — Max. speed km/h 94.8 Travel — Min. turning diameter m 24.605 Travel — Wheelbase mm 1995+4405+1370 Travel — Tread (front/rear) mm 2028/1837 Travel — Min. clearance mm 270 Travel — Displacement l 12.8 Travel — Total vehicle weight kg 41000 Travel — Fuel tank capacity l 410 Travel — Fuel consumption per 100km l/100km 40 Pumping operation — Concrete pumping pressure(high pressure/low pressure) Mpa 13/8.7 Pumping operation — Theoretical pumping times(high pressure/low pressure) 次/min 18/27 Pumping operation — Max. diameter of pumping concrete aggregate mm 40 Pumping operation — Feeding height mm 1540 Pumping operation — Reach height m 48.1 Pumping operation — Reach depth m 34 Pumping operation — Slewing radius m 42.75 Pumping operation — Outrigger span Overall outrigger span mm 10500 Pumping operation — Front outrigger transverse span mm 10450 Pumping operation — Rear outrigger transverse span mm 10300 Pumping operation — Water tank capacity l 600 Pumping operation — Max. pressure of water pump Mpa 2
Travel Item Unit Value Max. gradeability — 35% Brake distance (m) — ≤10 Approach angle/departure angle (。) — 17/10 Tyre specification — 315/80R22.5 Output power (kw/(r/min)) — 294/1400~1800 Max. torque (N.m/(r/min)) — 2200/1050~1400 Emission Standard — Nation III GBⅢ
Pumping operation Item Unit Value Pumping system (Theoretical output(high pressure/low pressure)) — m3/h Slewing angle (。) — 370 1st boom stretch angle (。) — 90 2nd boom stretch angle (。) — 180 3rd boom stretch angle (。) — 180 4th boom stretch angle (。) — 250 5th boom stretch angle (。) — 250 Others — Dosing type Lubricating method — Automatic lubrication Controlling method — Manual/remote control
