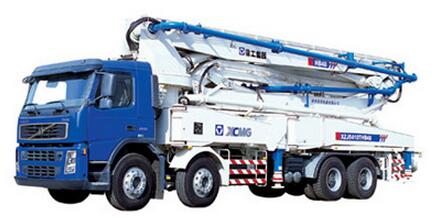

Concete pump truck
HB44
ItemParameterOutline dimensions (Length´ Width ´Height)mm12310×2500×3990Fuel typeDieselEngine emissi
Parameters
| Item | Unit | Value |
|---|---|---|
| Outline dimensions (Length´ Width ´Height)mm | — | 12310×2500×3990 |
| Engine emission standard | — | Euro III |
| Displacement/Powerml/kW | — | 12100/279 |
| Steering type | — | Steering wheel |
| No. of axle | — | 4 |
| Wheel basemm | — | 1793+4407+1370 |
| No. of spring leaf | front/rear | 2+3/9 |
| Tire | — | 12.00R20 |
| Track (front/rear)mm | — | 2034/1831 |
| No. of tire (exclude spare tire) | — | 12 |
| Total vehicle weightkg | — | 36500 |
| Crew in cab | — | 2 |
| Approach angle/Departure angle | — | 21°/12° |
| Front overhang /Rear overhangmm | — | 1360/3380 |
| Max. speedkm/h | — | 94 |
| Min. ground clearancemm | — | 270 |
| Max. grade-ability | — | 38% |
| Fuel consumption per 100kmL/100km | — | 40 |
| Chassis (Model) | — | FM12 |
