Concete pump truck

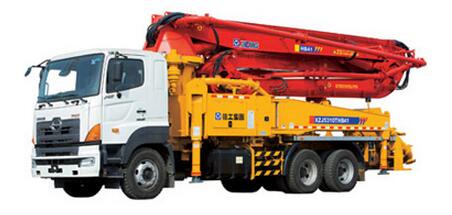

HB41
HB41 concrete pump adopts Hino FSIERV (6X4) three-axle chassis, excellent power performance and good economics. Front X type outrigger could operate on one side, and open semi-outrigger in narrow area. 5-section RZ type folded boom needs small space for boom folding and unfolding
Parameters
Travel
| Item | Unit | Value |
|---|---|---|
| Max. gradeability | — | 46.30% |
| Min. turning diameter | m | 17.8 |
| Tread (front/rear) | mm | 2050/1855 |
| Approach angle/departure angle (。) | — | 22/10 |
| Min. clearance | mm | 245 |
| Displacement | — | │ |
| Emission Standard | — | Nation III GBIII |
| Fuel tank capacity (│) | — | 400 |
| Fuel consumption per 100km | │/100km | 33.3 |
Pumping operation
| Item | Unit | Value |
|---|---|---|
| Pumping system | — | Theoretical output(high pressure/low pressure) |
| Concrete pumping pressure(high pressure/low pressure) | Mpa | 11.8/6.38 |
| Theoretical pumping times(high pressure/low pressure) | 次/min | 15/27 |
| Placing boom | — | Reach height |
| Slewing angle | — | 。 |
| 1st boom stretch angle | — | 。 |
| 2nd boom stretch angle | — | 。 |
| 3rd boom stretch angle | — | 。 |
| 4th boom stretch angle | — | 。 |
| 5th boom stretch angle | — | 。 |
| Outrigger span | — | Outrigger longitudinal span |
| Other | — | Dosing type |
