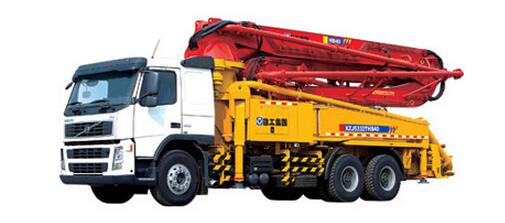

Products / Concrete / Concete pump truck / HB40 Parameters Item Unit Value Travel — Max. speed km/h 90.8 Travel — Min. turning diameter m 18.4 Travel — Wheelbase mm 4900+1370 Travel — Tread (front/rear) mm 2019/1834 Travel — Min. clearance mm 270 Travel — Displacement l 12.8 Travel — Total vehicle weight kg 32600 Travel — Fuel tank capacity l 410 Travel — Fuel consumption per 100km l/100km 40 Pumping operation — Concrete pumping pressure(high pressure/low pressure) Mpa 11.8/6.38 Pumping operation — Theoretical pumping times(high pressure/low pressure) 次/min 15/27
Travel Item Unit Value Max. gradeability — 34.70% Brake distance (m) — ≤7 Approach angle/departure angle (。) — 18/10 Tyre specification — 12.00R20 Output power (kw/(r/min)) — 294/1400-1800 Max. torque (N.m/(r/min)) — 2000/1050-1400 Emission Standard — Nation III GBⅢ
Pumping operation Item Unit Value Pumping system (Theoretical output(high pressure/low pressure)) — m3/h Max. diameter of pumping concrete aggregate — 40 Feeding height — 1450 Placing boom — Pumping slump range Reach height — 39.8 Reach depth — 27.9 Slewing radius — 35.8 Slewing angle — 370 1st boom stretch angle — 90 2nd boom stretch angle — 180 3rd boom stretch angle — 180 4th boom stretch angle — 240 5th boom stretch angle — 250 Outrigger span (Overall outrigger span) — 7800 Front outrigger transverse span — 8350 Rear outrigger transverse span — 7200 Others — Dosing type Lubricating method — Automatic lubrication Controlling method — Manual/remote control Water tank capacity — 600 Max. pressure of water pump — 2
